Description

Designed for residential applications and light commercial applications

MODEL NUMBER: MC-SU75-RN8L-B/MC-SU90-RN8L-B/MC-SU140-RN8L-B/MC-SU180-RN8L-B

Modular design for bigger capacity application
Multiple protection enhance system reliability
Multiple silent modes

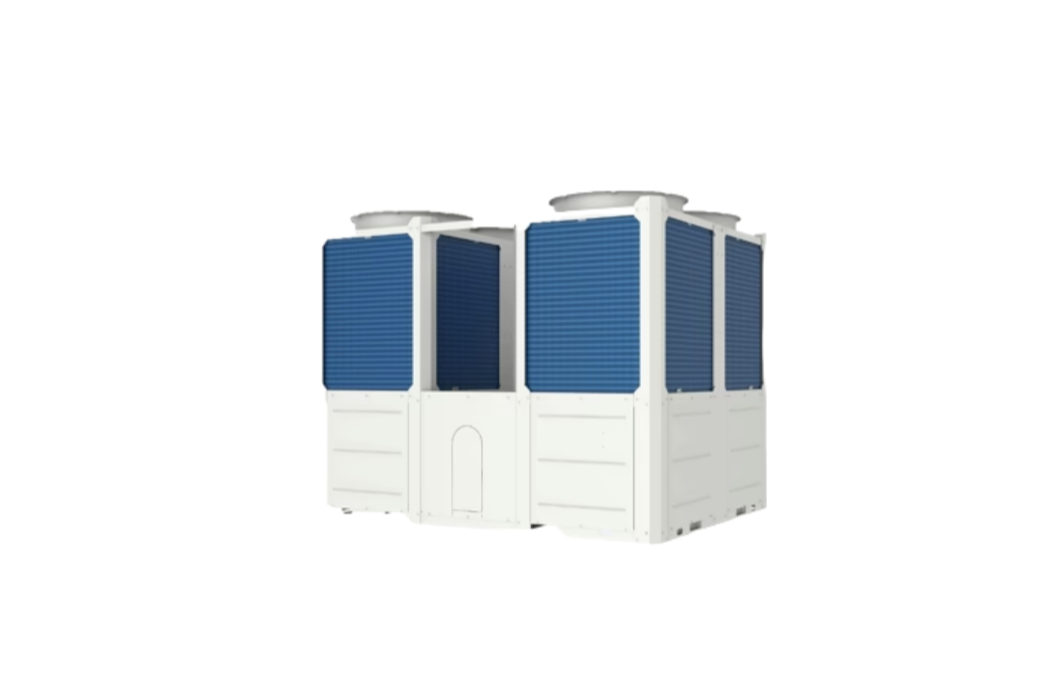

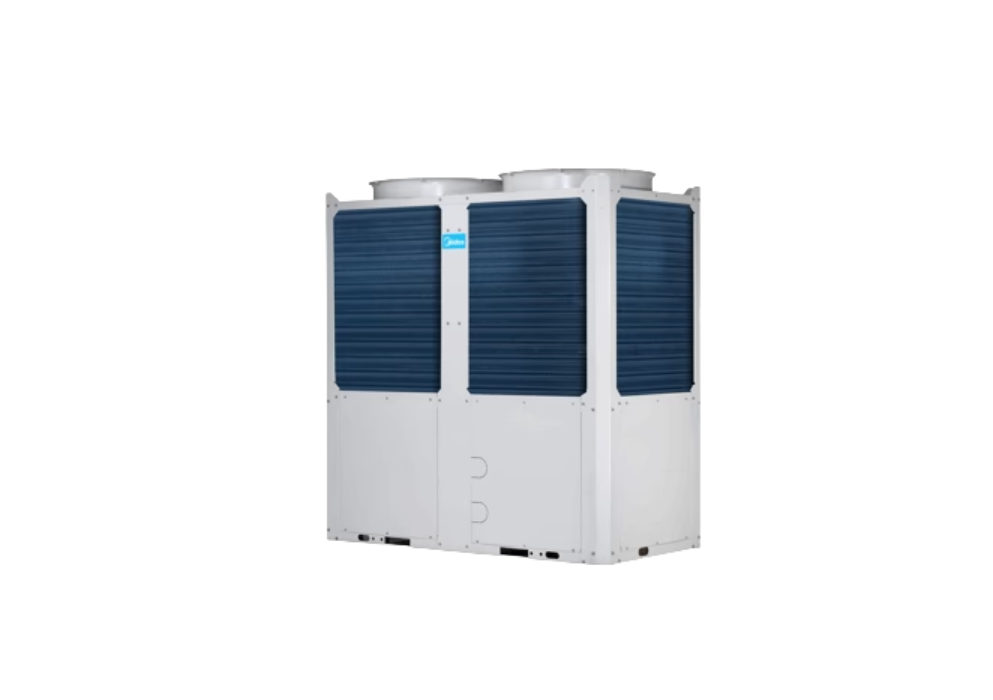

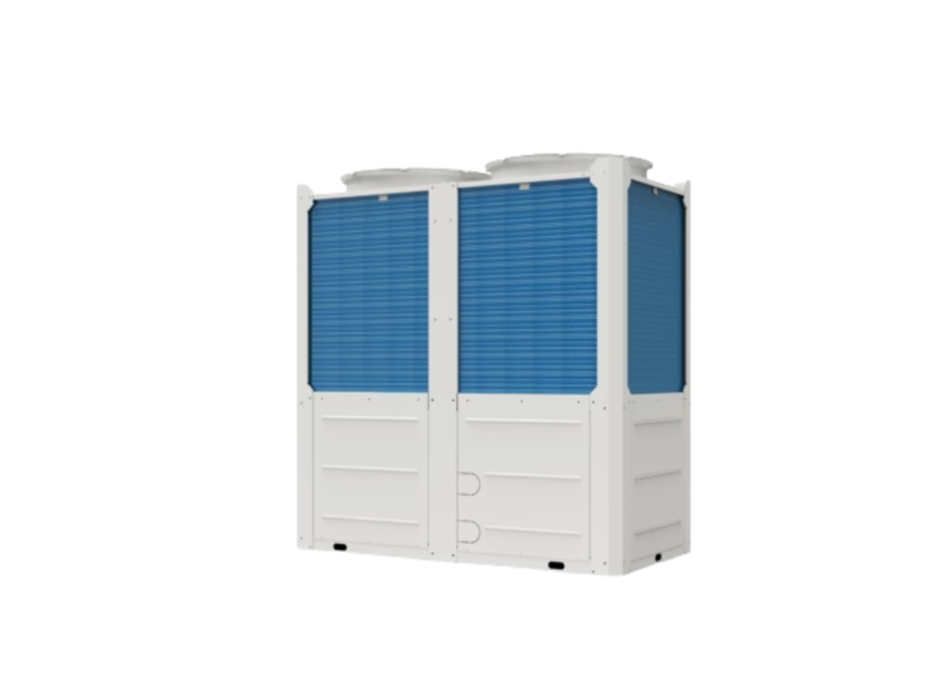

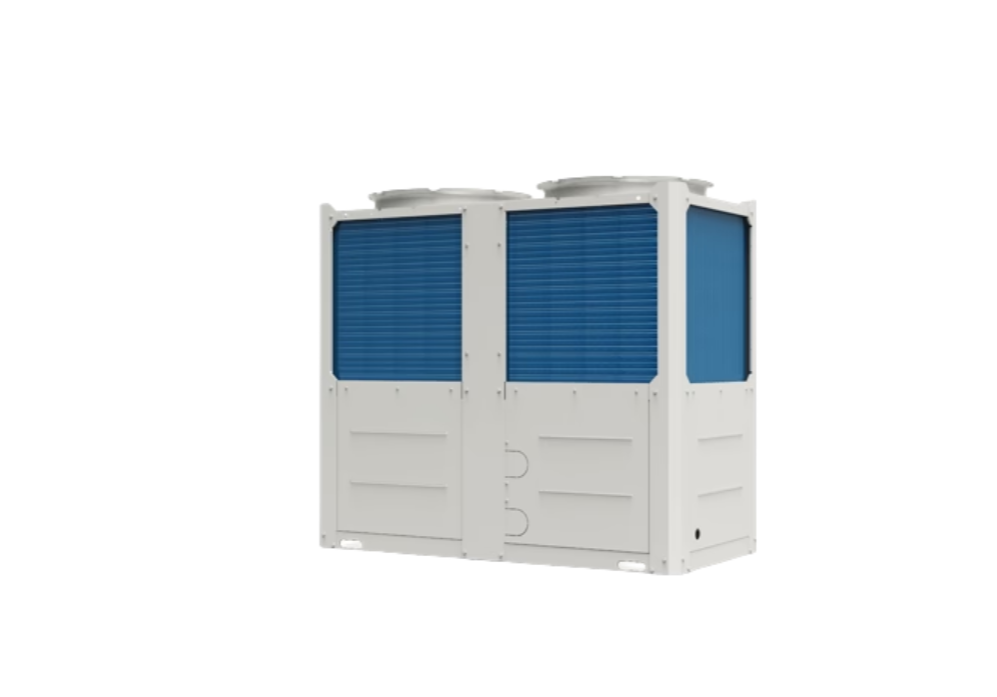

Aqua Thermal Air-Cooled Modular Chiller

MC-SU75-RN8L-B/MC-SU90-RN8L-B/MC-SU140-RN8L-B/MC-SU180-RN8L-B

One-stop solution for Heating, Cooling, and Domestic Hot Water (Customized option)

Modular design for bigger capacity application
Multiple protection enhance system reliability
Multiple silent modes

• General
  • Type Air-Cooled Modular Chiller
• Specification
  • Power supply (V-Ph-Hz) 380-415/3/50
  • Cooling Capacity (kW) 70~164
  • Heating Capacity(KW) 75~180
  • Ambient temp.operation range(Cooling)(℃) -10~48
  • Ambient temp.operation range(Heating)(℃) -20~43
  • Water outlet temp. range(Cooling)(℃) 0~20
  • Water outlet temp. range(Heating)(℃) 25~54
  • Net dimensions (W×H×D)(mm) （1995X1780X960）~（2753X2413X2220)
  • Net weight (kg) 430~1420
  • Fan Motor Type DC motor
  • Compressor Scroll
  • Refrigerant Type R32
