Description

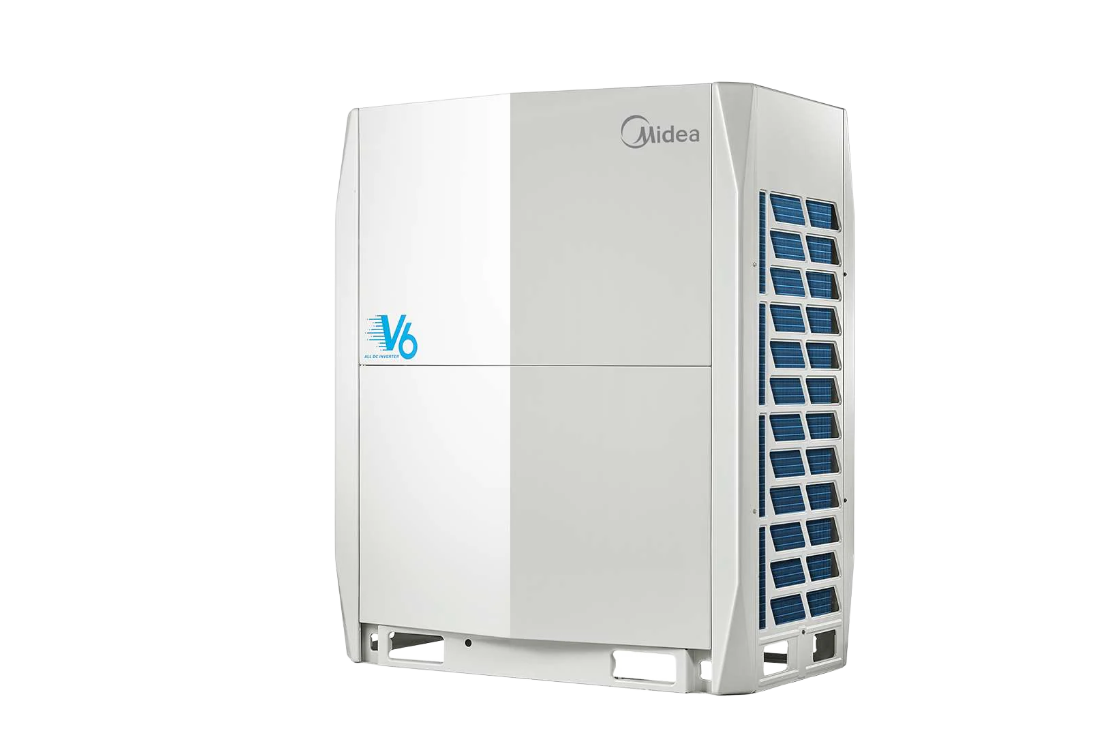

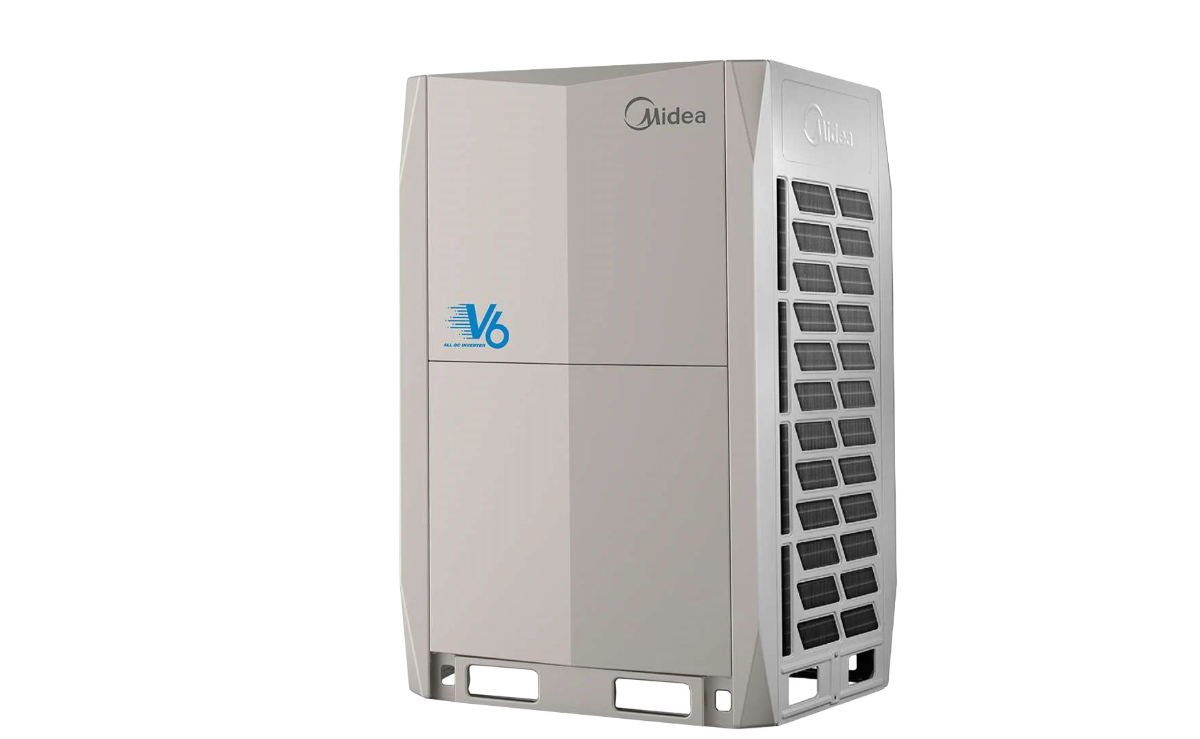

8HP-32HP V6 Series VRF (50/60Hz)
MV6-252W-900WV2GN1
Redefine Strong Performance
Wide capacity range and operation range
EMS maximizes comfort and energy efficiency
EVI increases heating and cooling capacity under extreme conditions
Multi channels refrigerant cooling system
Triple configurations simplified installation, commissioning and servicing
As the leading VRF product, V6 boasts substantial benefits such as the combination capacity can be up to 96HP which is leading in HVAC industry; EVI compressor significantly increases heating and cooling capacity under extreme conditions, EMS realizes that evaporating temperature (in cooling) and condensing temperature (in heating) are automatically adjusted according to both indoor and outdoor temperature to maximize the comfort and energy efficiency. Besides, the intelligent control system adds more value to V6 product.
)
)
)
)
| Specification | |
|---|---|
| Power Supply (Ph-V-Hz) | 380-415/3/50(60) |
| Capacity (kW) | 25.2~90.0 |
| Capacity (kBtu/h) | 86.0~307.1 |
| Net dimensions (W×H×D)(mm) | (990×1635×790)~(1730×1830×850) |
| Packed dimensions (W×H×D)(mm) | (1090×1805×860)~(1800×2000×910) |
| Net weight(kg) | 227.0~475.0 |
| Gross weight(kg) | 242.0~507.0 |
| Ambient temp.operation range(Cooling)(℃) | -5~54 |
| Ambient temp.operation range(Heating)(℃) | -23~24 |
